Alumina-Chromium Vibration Cast Crucible
, Vibration Cast Refractory Crucible
, Alumina-Chromium Castable Refractory

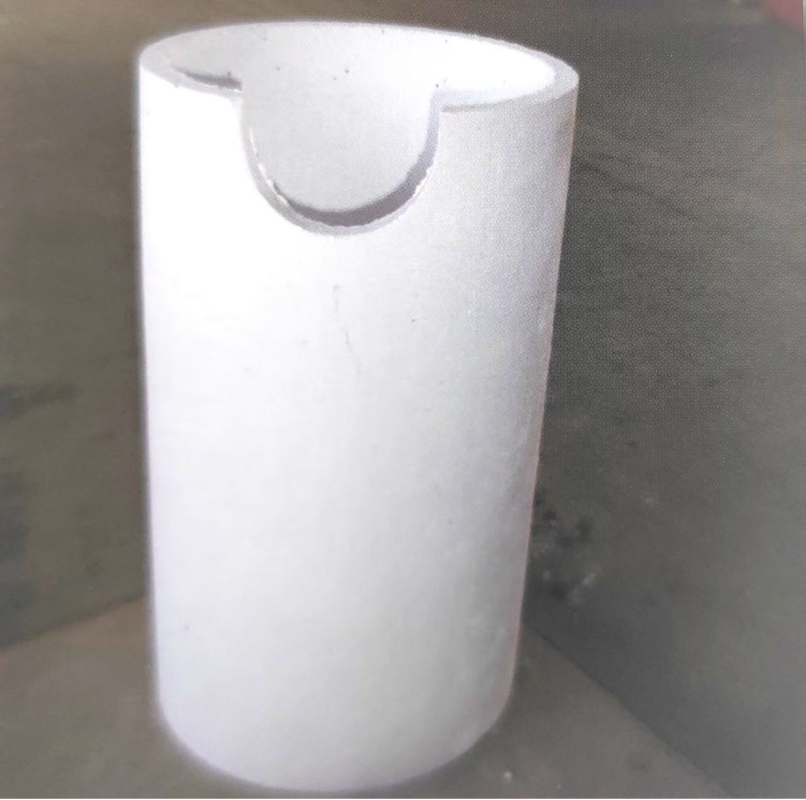

Alumina-Chromium Vibration Cast Crucible
Summary:
This product is made of composite aggregates of high-purity alumina and chromium oxide and sintered at high temperature. Its dense body features low porosity, combining the high-temperature resistance of alumina and the strong molten slag corrosion resistance of chromium materials, making it suitable for smelting various highly corrosive alloys.
Product features:
1.Maximum capacity up to 3 tons
2.Complex shapes can be fabricated, such as built-in pouring siphons.
Range of application:
Suitable for smelting highly corrosive non-ferrous alloys and precision casting. Vibration casting can be used to produce crucibles when the required sizes or shapes are uneconomical or impractical to manufacture by isostatic pressing.
Technical data:
| Brand/Specification |
Alumina-Chromium Vibration Cast Crucible |
| CA93C |
| Al2O3 (Wt.%) |
93 |
| SiO2 (Wt.%) |
2.8 |
| Fe2O3 (Wt.%) |
<0.1 |
| CaO+MgO (Wt.%) |
0.1 |
| K2O+Na2O (Wt.%) |
0.2 |
| Cr2O3 (Wt.%) |
3.5 |
| Bulk Density(g/cm3 ) |
3.14 |
| Air Permeability(%) |
19.3 |
| Thermal Expansion Coefficient(M/K) |
8.2 |
| Thermal Conductivity(M/m/K) |
3 |
| Max. Service Temperature(℃) |
1750 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 1100×800×700 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
