Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: MgO-Cr2O3 Brick
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Fire-resistance Properties: |
Excellent Fire-resistance Properties |
Temperature Intensity: |
High Temperature Intensity |
Resistance To Alkaline Slag Erosion: |
Strong Resistance To Alkaline Slag Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Fire-resistance Properties: |
Excellent Fire-resistance Properties |
Temperature Intensity: |
High Temperature Intensity |
Resistance To Alkaline Slag Erosion: |
Strong Resistance To Alkaline Slag Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

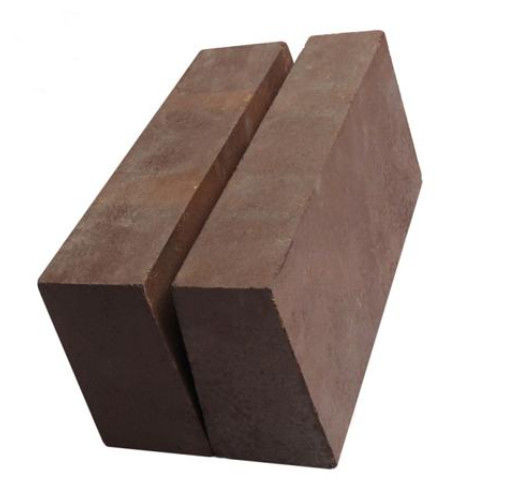

MgO-Cr2O3 Brick
MgO-Cr2O3 Brick/Excellent fire-resistance properties/High temperature intensity/Strong resistance to alkaline slag erosion
Summary:
MgO-Cr2O3 Brick is a refractory material product mainly composed of magnesium oxide (MgO) and chromium trioxide (Cr2O3), with periclase and spinel as the main mineral components. This type of brick has high fire resistance, high temperature strength, strong resistance to alkaline slag erosion, excellent thermal stability, and also has certain adaptability to acidic slag.
Product features:
Range of application:
Used for the safety lining of refining furnace, nonferrous metallurgical furnace, cement kiln furnace and glass furnace;
Technical data:
| Brand Specification | MgO-Cr2O3 Brick | |||||
| ZMGe-16A | ZMGe-16B | ZMGe-12A | ZMGe-12B | ZMGe-8A | ZMGe-8B | |
| MgO%≥ | 55 | 50 | 60 | 55 | 65 | 60 |
| Cr₂O₃%≥ | 16 | 16 | 12 | 12 | 8 | 8 |
| SiO₂%≤ | 3.5 | 4.5 | 3.5 | 4.5 | 4.0 | 5.0 |
| Apparent Porosity % ≤ | 18 | 18 | 18 | 18 | 20 | 20 |
| Bulk Density g/cm³ ≥ | 3.05 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 |
| C.C.S MPa ≥ | 35 | 30 | 35 | 30 | 35 | 30 |
| Refractoriness Under Load of 0.2MPa ℃ ≥ | 1620 | 1580 | 1620 | 1580 | 1620 | 1580 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:Dry masonry.
