Isostatically Pressed Zirconia Crucibles
, Zirconia Crucibles for High-Temp Melting
, Refractory Zirconia Crucibles with Warranty

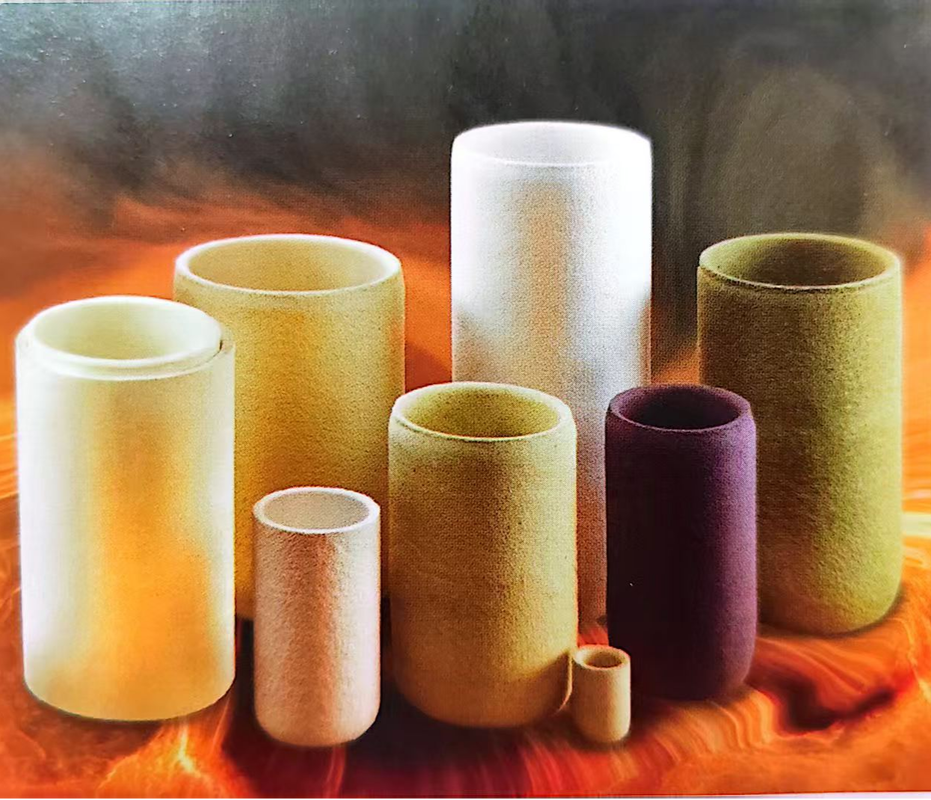

Isostatically Pressed Zirconia Crucibles
Summary:
This product is made from high-purity stabilized zirconia powder and refined via high-temperature sintering. Zirconia crystals possess extremely strong chemical inertness and highly effective resistance to erosion by acid slags, featuring high refractoriness, excellent fracture toughness as well as a dense and stable structure.
Product features:
1.Highly efficient resistance to acid slag and silicate melt erosion;
2. Excellent thermal shock resistance
3. Excellent high temperature resistance
Range of application:
Suitable for acidic industrial high-temperature heat treatment scenarios such as precious metal purification, rare earth smelting and superalloy melting.
Technical data:
| Brand/Specification |
Isostatically pressed zirconia crucibles |
| ZC931 |
ZC951 |
ZC961 |
| ZrO2+HfO2 (Wt.%) |
93 |
92.9 |
94 |
| Al2O3 (Wt.%) |
0.8 |
1 |
0.6 |
| SiO2 (Wt.%) |
1.2 |
1.5 |
0.9 |
| CaO (Wt.%) |
4 |
3.8 |
4.4 |
| Fe2O3 (Wt.%) |
0.1 |
<0.1 |
0.1 |
| Bulk Density(g/cm3) |
4.35 |
4.5 |
4.5 |
| Air Permeability(%) |
20 |
18.5 |
18.5 |
| Thermal Expansion Coefficient(M/K) |
8.4 |
8.5 |
8.5 |
| Thermal Conductivity(M/m/K) |
1.5 |
1.6 |
1.6 |
| Max. Service Temperature(℃) |
1850 |
1850 |
1850 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 1100×800×700 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
