Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: Fusd-bonded MgO-Cr2O3 Brick
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
High Temperature Performance: |
High Slag Resistance, Fire Resistance And High Temperature Resistance |
Thermal Shock Stability: |
Excellent Thermal Shock Stability |
Heat Shock Resistance: |
Strong Heat Shock Resistance |
Resistance To Chemical Erosion: |
Excellent Resistance To Chemical Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
High Temperature Performance: |
High Slag Resistance, Fire Resistance And High Temperature Resistance |
Thermal Shock Stability: |
Excellent Thermal Shock Stability |
Heat Shock Resistance: |
Strong Heat Shock Resistance |
Resistance To Chemical Erosion: |
Excellent Resistance To Chemical Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

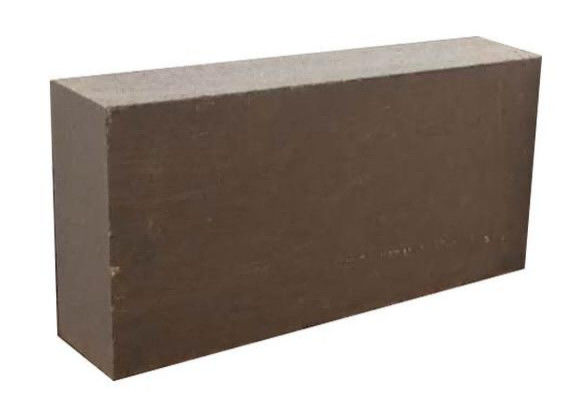

Fusd-bonded MgO-Cr2O3 Brick
Fusd-bonded MgO-Cr2O3 Brick/High slag resistance, fire resistance and high temperature resistance/Excellent thermal shock stability/Strong heat shock resistance/Excellent resistance to erosion
Summary:
Fusd-bonded MgO-Cr2O3 Brick is a high-end product with excellent corrosion resistance, mainly made of magnesia chrome spinel synthesized by capacitive method, and processed by high-pressure molding and high-temperature sintering.
Product features:
Range of application:
Used for the working lining of the key locations of RH, VOD, AOD furnaces and copper flash furnace.
Technical data:
| Brand Specification |
Fusd-bonded MgO-Cr2O3 Brick | |||||||
| ZDMGe-26A | ZDMGe-24A | ZDMGe-22A | ZDMGe-22B | ZDMGe-20A | ZDMGe-20B | ZDMGe-16A | ZDMGe-16B | |
| MgO%≥ | 50 | 52 | 54 | 54 | 58 | 58 | 62 | 62 |
| Cr2O3%≥ | 26 | 24 | 22 | 22 | 20 | 20 | 16 | 16 |
| SiO₂%≤ | 1.2 | 1.2 | 1.2 | 1.5 | 1.2 | 1.5 | 1.2 | 1.5 |
| Apparent Porosity % ≤ | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Bulk Density g/cm³ ≥ | 3.30 | 3.30 | 3.30 | 3.25 | 3.25 | 3.25 | 3.25 | 3.25 |
| Cold Crushing Strength MPa≥ | 45 | 45 | 45 | 40 | 45 | 40 | 45 | 40 |
| Refractoriness Under Load of 0.2MPa ℃ ≥ | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
