Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: CS
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Kiln Skin Bonding Performance: |
Excellent Kiln Skin Bonding Performance |
Mechanical Properties And High-temperature Toughness: |
Excellent Mechanical Properties And High-temperature Toughness |
Resistance To Erosion: |
Excellent Resistance To Alkali,sulfur Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Kiln Skin Bonding Performance: |
Excellent Kiln Skin Bonding Performance |
Mechanical Properties And High-temperature Toughness: |
Excellent Mechanical Properties And High-temperature Toughness |
Resistance To Erosion: |
Excellent Resistance To Alkali,sulfur Erosion |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

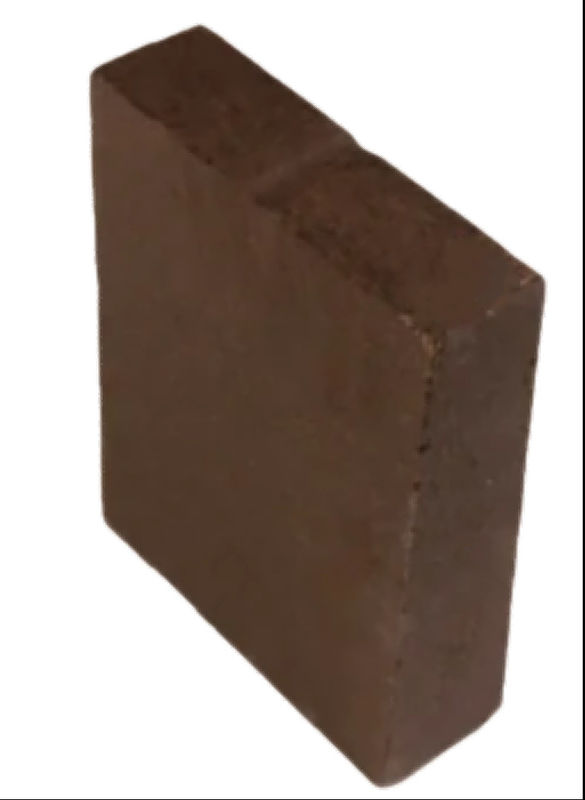

Magnesite Composite Spinel Brick(CS)
Magnesite Composite Spinel Brick(CS) /Excellent kiln skin bonding performance/Excellent mechanical properties and high-temperature toughness/Excellent resistance to alkali,sulfur erosion
Summary:
Magnesite Composite Spinel Brick is a new generation of chromium free alkaline product used in cement kilns. It is mainly made of high-purity magnesia sand and fused alumina spinel, with Mg0-A1203-Fe203 spinel and periclase as the main crystal phases. Specific mineralizers are added and high-pressure molding and high-temperature sintering are carried out. It is currently the most technologically advanced green and environmentally friendly material. Mainly used for the burning zone of large and medium-sized new dry process cement kilns.
Product features:
Range of application:Burning Zone
Technical data:
| Product Name |
Magnesite Composite Spinel Brick |
|
| Product Code | CS | |
| Chemical Composition (%) | MgO | ≥88 |
| Al2O3 | ≥3.5 | |
| Fe2O3 | ≥3.5 | |
| Bulk Density (g/cm3) | ≥2.90 | |
| Apparent Porosity (%) | ≤17 | |
| Cold Crushing Strength (MPa) | ≥60 | |
| Refractoriness Under Load T0.6 (℃) | ≥1700 | |
|
Thermal Shock Resistance(1100℃,Water Cooling /Cycles ) |
≥10 | |
| Thermal Conductivity (W/m.K)(1000℃) | ≤2.7 | |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
