Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: ISO
Model Number: Y35BH
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Magnetic: |
Strong Magnetic |
Construction And Maintenance: |
Easy Construction And Maintenance |
Cost: |
Lower Cost |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Magnetic: |
Strong Magnetic |
Construction And Maintenance: |
Easy Construction And Maintenance |
Cost: |
Lower Cost |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Magnetic Wear-resistant Ceramic Sheet/Plate
Magnetic Wear-resistant Ceramic Sheet/Plate/Strong magnetic/Easy construction and maintenance/Lower cost
Summary:
The product is a high-performance permanent magnet, the product itself is not wear-resistant, mainly using its own strong magnetic adsorption on the surface of the equipment or pipeline, and then by adsorption of iron filings in the transport medium. The magnetic powder forms a protective film on the surface of the equipment, so as to protect the equipment.
Product features:
Range of application:

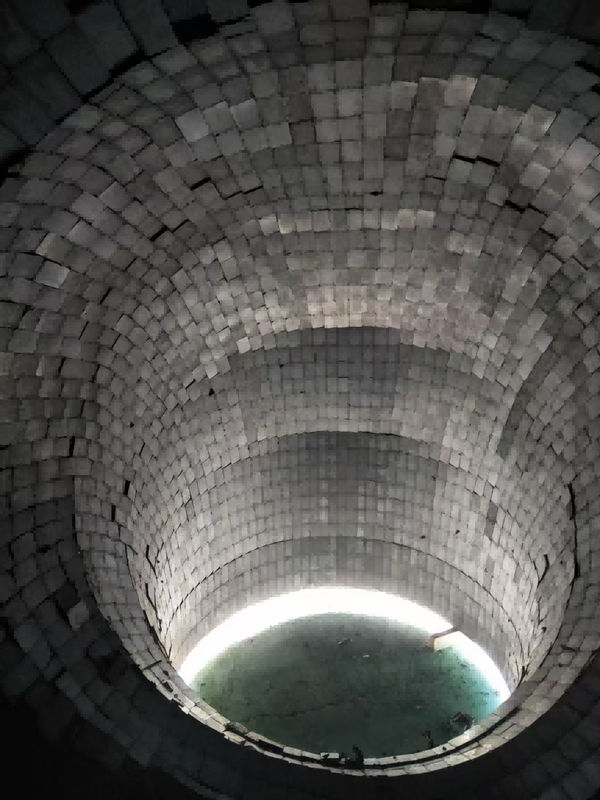

Raw material grinding cyclone, cement grinding cyclone, all kinds of dust collection duct, dust collector shell, vertical grinding shell, separator shell, etc
Technical data:
| Product Name |
Magnetic Wear-resistant Ceramic Sheet/Plate |
| Material Quality | Y35BH |
| Specifications and Models (mm) |
100x50x6/8/10/12/15mm 85x65x18/20mm |
| Curie point (℃) | 460 |
| Magnetic Density(g/cm³) | 4.9 |
| Usage Temperature(℃) | -50~350 |
| Compressive Strength (MPa) | 850 |
| Modulus of Rupture(MPa) | 210 |
| Rockwell Hardness(HRC) | 85 |
| Water Absorption | 0.20% |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×92×70 mm and weighs about 1.2 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 36 months.
YuDa’s Expertise
Beijing Yuda's main business includes refractory materials, insulation materials, wear-resistant materials, metal materials, and provides refractory material diagnosis, design, research and development, manufacturing, construction, and maintenance services. For many years, we have been committed to providing our customers with the highest quality products, the most comprehensive services, and the most accurate solutions, saving them time, effort, and money, and ensuring the stable operation of high-temperature kilns. At the same time, we can also provide engineering general contracting services such as refractory material selection, design, installation, and maintenance, optimize refractory material configuration, improve the synergy between refractory materials and processes, increase kiln operation rate, and provide you with comprehensive nanny style services.
