Place of Origin: Beijing,China
Brand Name: YUDA
Certification: ISO
Model Number: Vault furnace wall tiles/Lattice bricks
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Rate Of Thermal Expansion: |
Low Rate Of Thermal Expansion |
Residual Quartz Content: |
Low Residual Quartz Content |
True Density: |
Small True Density |
Thermal Stability: |
Good Thermal Stability Above 600℃ |
Load Softening Point: |
High Load Softening Point |
Creep Rate: |
Low Creep Rate |
Shape And Size: |
Regular Shape, Accurate Size |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Rate Of Thermal Expansion: |
Low Rate Of Thermal Expansion |
Residual Quartz Content: |
Low Residual Quartz Content |
True Density: |
Small True Density |
Thermal Stability: |
Good Thermal Stability Above 600℃ |
Load Softening Point: |
High Load Softening Point |
Creep Rate: |
Low Creep Rate |
Shape And Size: |
Regular Shape, Accurate Size |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

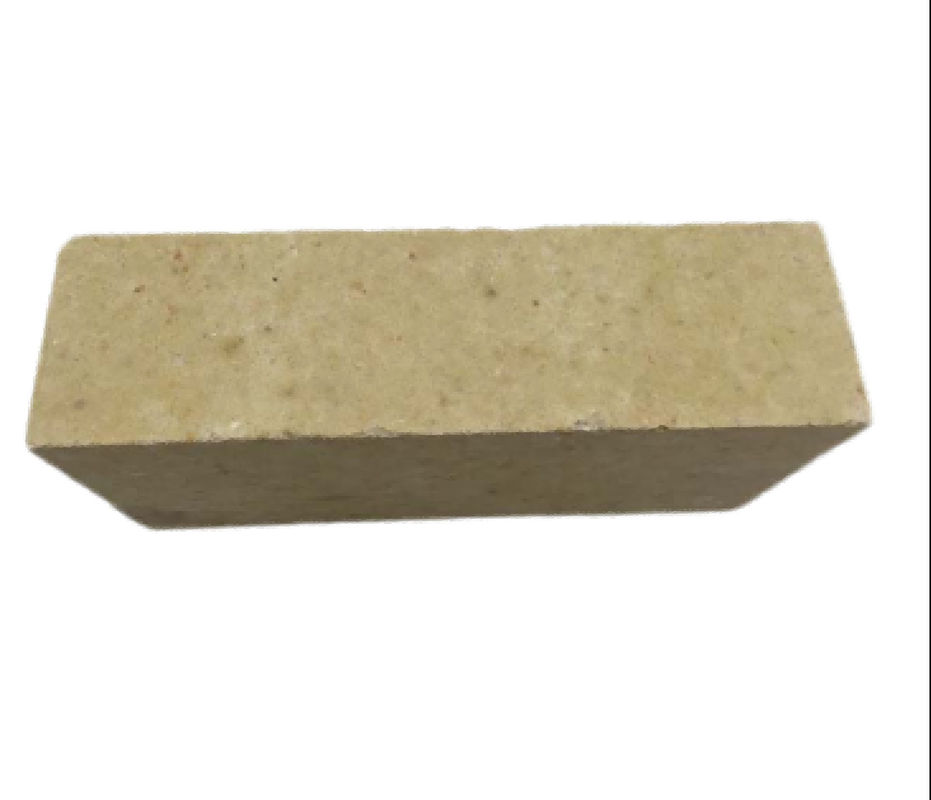

Silica Bricks for Hot Blast Stoves
Silica Bricks for Hot Blast Stoves/Low rate of thermal expansion/Low residual quartz content/Small true density/Good thermal stability above 600℃/High load softening point /Low creep rate
Summary:
Silica Bricks for Hot Blast Stoves is used to build siliceous refractory products with scale-quartz-based crystalline phase in the high-temperature part of the blast furnace hot blast furnace.
Product features:
Range of application:
It is mainly used in high-temperature areas such as the top of the blast furnace hot blast furnace, the upper furnace body and the upper lattice body.
Technical data:
| Index Item |
Silica Bricks for Hot Blast Stoves | ||||
| Vault furnace wall tiles | Lattice bricks | ||||
| SiO₂ (%) ≤ | 95 | 96 | 95 | 96 | |
| Fe₂O₃ (%) ≤ | 1.0 | ||||
| Refractoriness(℃) ≥ | 1710 | 1710 | 1710 | 1710 | |
| Refractoriness Under Load(℃)≥ | 1650 | 1660 | 1650 | 1660 | |
| Apparent Porosity(%)≤ | 22 | 22 | 23 | 23 | |
| Cold Crushing Strength (MPa)≥ |
Weight ≤20kg |
35 | 40 | 30 | 35 |
| Bulk Density(g/cm³)≥ | 2.35 | ||||
|
Creep rate (0.2MPa,20~50h,%) |
0.8 | ||||
|
Thermal expansion (1000℃,%)≥ |
1.26 | ||||
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 100×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 24 months.
Construction method:
Use refractory mortar for construction.
